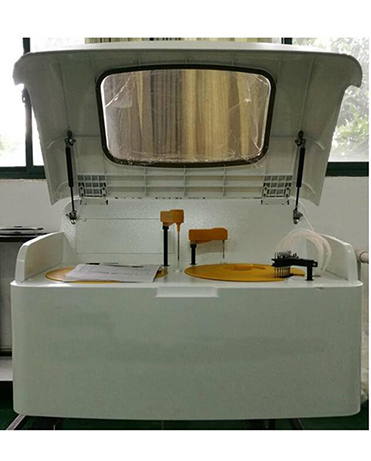

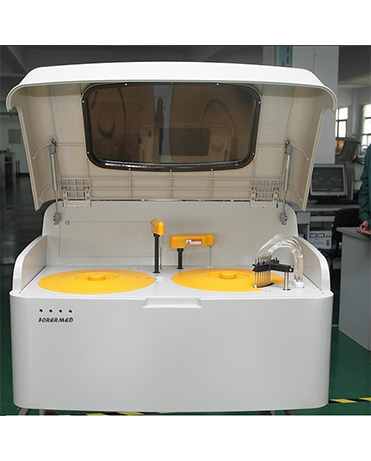

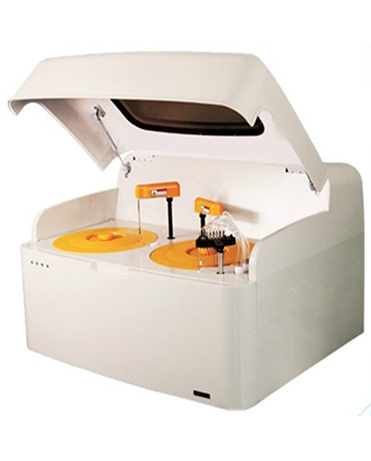

YJ-250 adopts new concept and friendlier software, new technology and spare parts for better quality and function. Automatic cleaning station with sample and reagent probes, level detection and collision protection for sample and reagent probes. It also has a reliable reagent chamber cooling system and a powerful reaction cuvette cleaning system. New concept test control systems are available on request.
|
Model |
YJ-250 Biochemistry Analyzer |
|
|
Assay Model |
Random Access with direct reading system |
|
|
Method |
End point,Kinetic,Fixed time,Immunoturbidimetry,1-2 reagent,Multistandard,reagent/serum blank,etc |
|
|
Assay Item |
40 assay |
|
|
ISE mould (Na+ ,K+, Cl- /LI*) available on request |
||
|
Throughput |
1Reagent |
257 tests/hour |
|
2Reagent |
150 tests/hour |
|
|
With ISE |
+120 tests/hour |
|
|
Test Menu |
T.BILI r-GT/GGT CHO Ca APOB-1/B CHE |
|
|
D.BILI ALP/AKP TG CL APOB CREA |
||
|
TP UREA CK P CK-MB Mg |
||
|
ALB CREA LDH C ASO AFU |
||
|
Lactic Acid ALT/GPT UA a-HBDH CO2 FMN |
||
|
LP(a) AST/GOT GLU AMY LDL-C HDL-C |
||
|
CHE LA TBA ADA HA-CRP PA |
||
|
FE Cu Zn C3 C4 lgG |
||
|
IgM lgA and drug ,toxicity ,etc |
||
|
Sample Position |
60 |
|
|
Including standard,control and stat,either serum cup primary tube available |
||
|
Sample Volume |
1~100ul,0.1ul/step |
|
|
Reagent Position |
40 or 80 (optional) |
|
|
Reagent Volume |
R1:1~400ul,1ul/step ,R2:1~400ul,1ul/step |
|
|
Reagent/Sample Probe |
With liquid level sensor,collision sensor,teflon coating and automatic washing station |
|
|
Reaction Time |
0~999 seconds |
|
|
Cuvette |
High quality uv-transmitted plastic cuvette,Quartz glass cuvettes |
|
|
Cuvette Washing |
8 channels automatic washing system for reaction cuvettes |
|
|
Probe And Mixer Washing |
Independent washing station for each sample/reagent probe and mixer |
|
|
Alarm |
Automatic alarm for malfunction(eg:collision,reagent/sample insufficiency,full waste container,etc) |
|
|
Callibration |
Linear,Non-linear,Multi standard ,K factor |
|
|
Sample Dilution/Retest |
Sample can be diluted and retested if results are out of range or sample is insufficient,Also with calibrator auto diluting function |
|
|
Wavelength |
340~810nm |
|
|
Light Source |
Halogen lamp |
|
|
Absorbance Resoulution |
0.0001A |
|
|
Absorbance Accuracy |
±0.0003A(0-2.5A) |
|
|
Repeatability (CV%) |
≤2 % |
|
|
Quality Control |
Levy Jennings quality control program at 3 levels |
|
|
Bar Code |
Optional |
|
|
Printer |
Multiple report formats available |
|
|
Test Control Function |
New card control system available on request |
|
|
Language |
English,French,Spanish,German,Russia.etc |
|
|
System |
Windows XP or Vista ,Windows 7 |
|
|
Power Supply |
220V/50HZ or 110V/60HZ (optional) |
|
|
Dimension |
85*72*53(cm) |
|
|
Weight |
85kg |
|
|
HS Code |
90278099 |
|
