Endoscope Washer Disinfector



* Fast & Clean * 10-minute * Embedded heater * Embedded virus-free filter

Medical Disinfection Machine Auto endoscope cleaning machine

Rich Features, wide-range of application
* Washing, disinfection, leaking detection, drying, self disinfection, flow monitor, history tracking, printing, programmable and
fully automatic,
* Suitable for multi types of disinfectant（Glutaral, OPA, acidic electrolyzed-oxidizing water, peroxyacetic acid）
* Suitable for multi brands of soft scope（Olympus、Pentax、Fujinon etc）

Application Scenarios
Rich Features, wide-range of application * Washing, Sterilize, leaking detection, drying, self Sterilize, flow monitor, history
tracking, printing, programmable and fully automatic
* Suitable for multi types of Sterilize
* Suitable for multi brands of soft scope

Intelligent, digitalized
• Based on Android, installable to pad or smart phone, easy to track/monitor for officer of endoscope center, Auto tracking and
centralized recording, reduce manual recording effort, data lose or human error.

Advantage：
1. The compact body design is convenient to save the space of the department; the width of the whole machine is 460mm.
2.Sterilant constant temperature control function
3. Self-sterilization function
4. Automatic alarm and prompt function
5. Data printing and its traceability function

Product Parameter

Model	YJ-G16	YJ-G16-2
Capacity of disinfectant tank	121	24L
Capacity of Enzyme tank	1.7L	3L
Capacity of Alcohol tank	1.7L	3L
Disinfectant Dosage	10L	20L
Leaking Detection	optional	Sensor equipped for detection of scope leaking, improper mounting or blocked
Disinfection Time	GA:210mins(T243℃）;；≥18mins（T=25℃）；OPA:≥10mins(T=25℃);AEOW: ≥10min（T=25℃）；PAA:≥10mins (T=25℃);
Enzyme Dosage	Programmable per user's need
Alert Function	Leaking scope detected, disinfectant level low, water intake flow low
Usage Counter	Tracked in system, display on panel
Disinfection quality monitor and Thermostatic Control	Alarm on faults and display fault type; suspend operation
Optional Module	a)Tracking system (tracking scope serial number, operant ID and operation record); b) Enzyme and Alcohol level-low alert module; c)Disinfectant concentration monitor; d) scope leaking or improper mounting detection

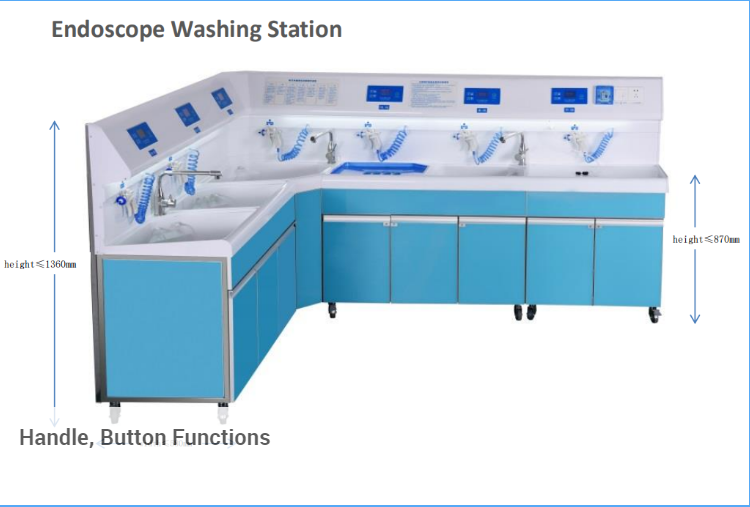

Endoscope Washing Station
