An electrocardiogram (ECG or EKG) machine is an essential medical device used in hospitals, clinics, and other medical facilities to help diagnose heart-related problems. The ECG machine measures the electrical activity of the heart and outputs it in the form of a graph that shows the heart’s rhythm and rate.
7 inch high resolution color touch screen
12 channels ， 12-lead simultaneous acquisition and display
ECG Automatic measurement and interpretation function

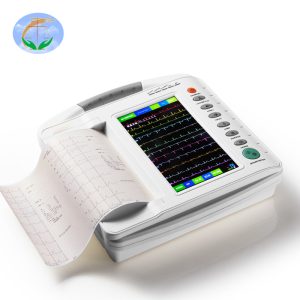

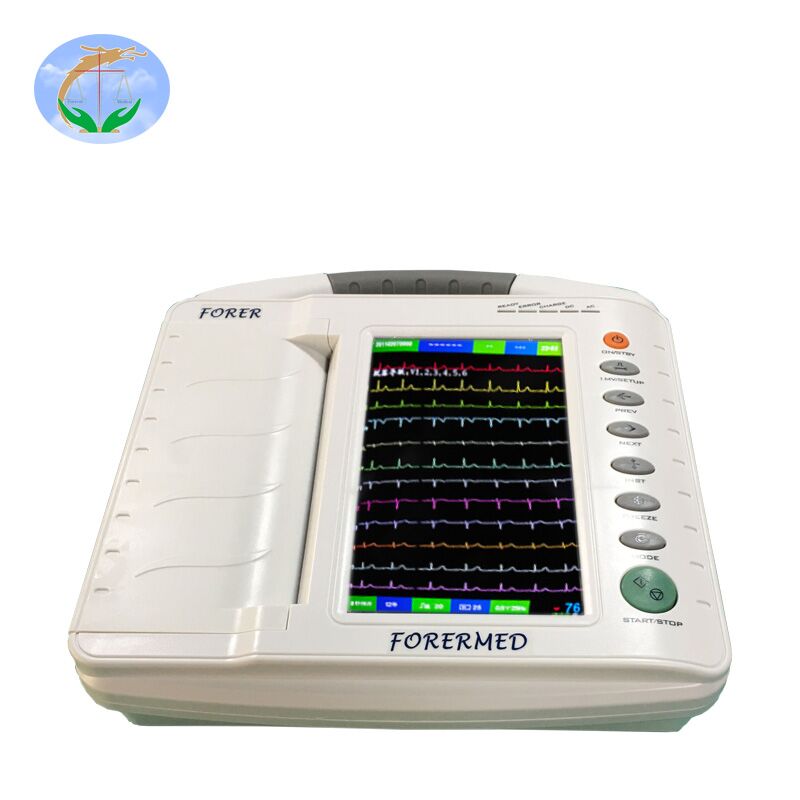

Digital electrocardiograph YJ-ECG12
Product Description
7 inch high resolution color touch screen
12-lead simultaneous acquisition and display
ECG Automatic measurement and interpretation function
Complete digital filters, resisting baseline drift, AC and
EMG interference
Compact and lightweight design
Support USB flash disk and micro SD card to extend memory
Software upgrade via USB/SD card
Built-in rechargeable Li-ion battery
Standard Confifiguration:
Main machine: 1 PC
Patient cable: 1 PC
Limb electrode: 1set (4pcs)
Chest electrode: 1set( 6pcs)
Power cable: 1 PC
200mm*20M recording paper: 1 PC
Paper axis: 1 PC
Power cord: 1 PC
Technical specifications
|
Technique Specifification |
|
|
Items |
Specification |
|
Lead |
Standard 12 leads |
|
Acquisition Mode |
Simultaneous 12 leads acquisition |
|
Measurement Range |
±5mVpp |
|
Input circuit |
Floating; Protection circuit against Defibrillator effect |
|
Input Impedance |
≥50MΩ |
|
Input circuit current |
<0.05µA |
|
Record mode |
Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2; |
|
Manual: 3CH, 2CH, 3CH+1R, 2CH+1R; |
|
|
Rhythm: Any lead selectable. |
|
|
Filter |
EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz |
|
DFT Filter: 0.05 Hz/ 0.15 Hz |
|
|
AC Filter: 50 Hz / 60Hz |
|
|
CMRR |
>100dB |
|
Patient leak current |
<10µA (220V-240V) |
|
Frequency Response |
0.05Hz~150Hz (-3dB) |
|
Sensitivity |
2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error:±5%) |
|
Anti-baseline Drift |
Automatic |
|
Time constant |
≥3.2s |
|
Noise level |
<15µVp-p |
|
Paper speed |
12.5 mm/s, 25 mm/s, 50 mm/s |
|
Recording mode |
Thermal printing system |
|
Paper specification |
Roll 200mmx20M |
|
Safety Standard |
IEC I/CF |
|
Sample Rate |
Normal: 1000sps/channel |
|
Power Supply |
AC: 100~240V, 50/60Hz, 30VA~100VA |
|
DC: 14.8V/2200mAh, built-in lithium battery |
|
