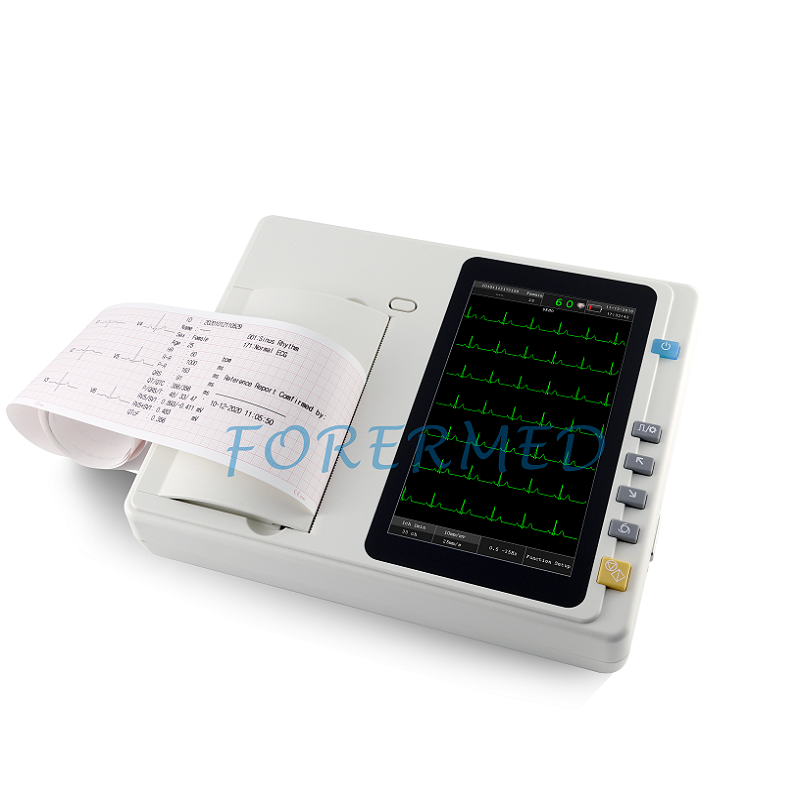

*7 inch high resolution color touch screen
*12-lead simultaneous acquisition and display
*Compact and lightweight design
*Software upgrade via USB/SD card
*Built-in rechargeable Li-ion battery
Standard Configuration
Main machine: 1 PC
Patient cable: 1 PC
Limb electrode: 1set (4pcs)
Chest electrode: 1set( 6pcs)
Power cable: 1 PC
80mm*20M recording paper: 1 PC
Paper axis: 1 PC
Power cord: 1 PC
Packing
Single package size: 32*25*17cm
Single gross weight: 2.8 KG
8 unit per carton, package size: 54*33*75cm, total gross weight 22 KG
| Lead | Standard 12 leads |
| Acquisition Mode |
Simult aneous 12 leads acquisition
|
|
Input Impedance
|
≥50MΩ
|
|
Input circuit current
|
<0.05μA
|
|
Record mode
|
Automatic:3CH*4+1R,3CH*4,3CH*2+2CH*3,3CH*2+2CH*3+1R,6CH*2
|
|
Manual: 3CH,2CH,3CH+1R,2CH+1R;
|
|
|
Rhythm: Any lead selectable.
|
|
|
CMRR
|
>100dB
|
|
Patient leak current
|
<10uA(220V-240V)
|
|
Frequency Response
|
0.05Hz~150Hz(-3dB)
|
|
Time constant
|
≥3.2s
|
|
Noise level
|
<15μVp-P
|
|
Paper speed
|
12.5mm/s25mm/s50mm/s
|
|
Recording mode
|
Thermal printing system
|
|
Thermal printing system
|
Roll 110mmx20M
|
