Introducing the Medical Mobile C-arm: A cutting-edge solution for medical imaging on the go. This portable device offers high-quality imaging capabilities, allowing healthcare professionals to perform real-time, fluoroscopic procedures with ease. With its compact design and advanced features, the Medical Mobile C-arm ensures accurate diagnostics and efficient patient care in any clinical setting. Experience flexibility and convenience in medical imaging with this state-of-the-art mobile solution. Hailey whatsapp+8615637181685
YJ-P5KW/P8KW Portable Digital xray
YJ-P5KW/P8KW Portable Digital Radiography SystemIntroduction
Easy positioning changes enable sequential exposures of the chest and abdomen to be acquired quickly and easily for efficient
technologist workflow.
Four swiveling wheel casters allow precise, easy positioning and travel in any direction, and the ability to spin the system in
place in tight spaces.
The articulating control panel allows rotation and height adjustment for instant image confirmation from any angle.
The small lightweight design and extended reach of the tube head allows one-hand operation for easy exam positioning.
Feature
 |
Ø Wireless Transmission Ø Easy Exposure interface Ø Hand switch and visual console Ø Fast work flow Ø Direct deposition CsI for better image quality with lower dose Ø 16 bit ADC for more image details Ø High-frequency inverter technology Ø Automatic measurement of shooting distance and thickness |

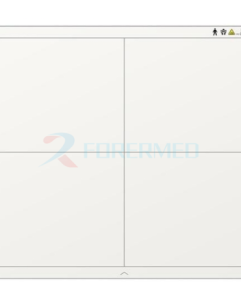

| X-ray detector(Flat Panel Detector) Type: Amorphous Silicon Scintillator: Cesium Iodide Active Area: 14x17Inch Pixel Matrix: 2304 × 2800 Pixel Pitch: 150um A/D Conversion: 16bits DQE: >=70% Spatial Resolution: 34Lp/cm Acquisition time: ≤2S Ingress Protection: IPX1 |
 |
 |
Equipped with a high frequency 5 kW or 8 kW generator (125kV, 200 mA, 400 mAs) provides high image quality in any situation. An integrated computer enables instantaneous image display, immediate image processing, local and USB device storage, networked archiving and printing. Easy to use, the intuitive user interface allows programming of almost unlimited anatomical protocols. High-quality preview images are displayed instantaneous prior to transmission using the industry standard DICOM interface. Advanced communication features have been added reducing the time required to share clinical information. |
| * USB devices * CD/DVD Burner
|
 |
Technical Parameter
|
Model
|
YJ-P5KW
|
YJ-8KW
|
|
Power Output
|
5kW
|
8kW
|
|
Current
|
10-100mA
|
10-125mA
|
|
Voltage
|
40-125kV
|
40-125KV
|
|
mAs
|
0.1-200mAs
|
0.1-400mAs
|
|
Exposure time
|
1-4000ms
|
1-6300ms
|
|
Focus Size
|
1.0/2.0
|
0.6/1.2
|
|
Detector Type
|
Wireless FPD
|
Wireless FPD
|
|
Vision Size
|
14*17"
|
14*17"
|
|
A/D Conversion
|
16 bits
|
16 bits
|
|
Spatial Resolution
|
3.4 lp/mm
|
3.4 lp/mm
|
|
Pixel Size
|
2304×2800
|
2304×2800
|
Product Details
