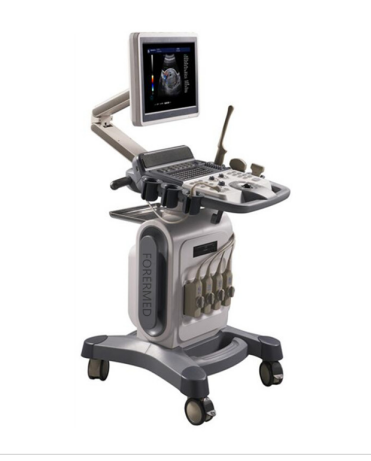

Color Ultrasonic Diagnostic Apparatus YJ-U50Pro

1. Product Name: Color Ultrasonic Diagnostic Apparatus

2. Purpose and applications:
To meet the basic hospitals in the abdomen, obstetrics, gynecology,

heart, urinary system, small organs, superficial, blood vessels, pediatrics,

neonatal, muscle, physical examination and other inspections anddiagnosis.

3. Main specifications and system overview:

3.1 Operating system: Windows 8

3.2 Pulse Wave Doppler
3.3 Directional Energy Doppler
3.4 Real-time triple synchronization
3.5 Spatial Composite Imaging
3.6 Tissue Harmonic Imaging
3.7 2B/4B Imaging

3.8 Support system languages: Chinese,English, French, Russian, Spanish.

3.9 Standard monitor size: 21.5 inch, high-definition medical grade LCD display, and 13.3 inch touchscreen

3.10 Integrated clipboard: display the saved images at the bottom of the screen, which can be directly transferred or deleted

3.11 Support real-time 3D imaging function (3D/4D/5D)

Optional Probe

5D ultrasound that you can afford

It equipped with a high-resolution medical display, adopts multi-beam parallel technology and sub-array element transducers, and its superior image clarity perfectly meets the needs of women's health care. At the same time, it relies on the realistic RealSkin 5D ultrasound technology and abundant measurement packages to better protect women's health.

What is HD Live（5D）Technology?

Ultrasounds with 3D/4D imaging have been around for years, but the HD live（5D） ultrasound technology uses a unique and moveable light source inside the probe that not only provides both 3D and 4D imaging, but “lights up” the baby, making it possible for soon-to-be-parents to see the facial expressions of their child, and even watch their baby yawn, wink and smile. An HD live（5D） ultrasound provides impeccable views of your baby by providing better depth perception. We can change the position of the light and more clearly see the baby’s lips, nose and eye lids.

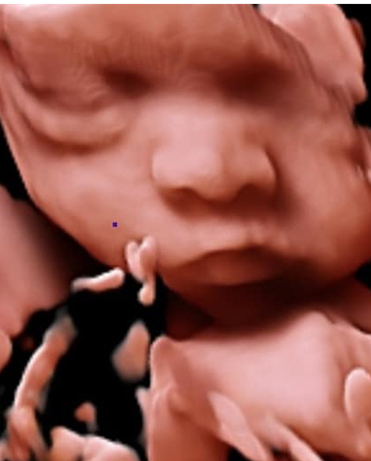

Real skin rendering

Real skin rendering adopts 4D ultrasonic images plus spatial dimension parameters to obtain more three-dimensional and realistic 4D images, which surpasses most of the limitations of traditional gray-scale ultrasound.

Smooth Workflow

The whole is elegant and beautiful, the diagnostic measurement package is rich and comprehensive, and the operation process is simple and fast.

Imaging Features

The whole is elegant and beautiful, the diagnostic measurement package is rich and comprehensive, and the operation process is simple and fast.

Trapezoid imaging

Spatial composite imaging

Spectrum pulse Doppler

Tissue harmonic imaging

DPDI

Real-time triplex

Expandable

Four fully activated probe interfaces. USB image storage export. Can connect external monitor and printer.

Efficient

Built-in file information management system can record the number, name, check number, check date, and so on, and can search through the number, check number, name and so on. The diagnostic report can be edited, ultrasound diagnostic image can be embedded in the report, and directly printed.

Simple

Integral small keyboard, easy to operate. Probe storage tank free combination.

Superior

Main screen is 21.5-inch and auxiliary screen is 13.3-inch medical ultrasonic touch screen, to meet the needs of doctors from different angles. The full use of touch screen can reduce inaccurate operation caused by button contact and pressing, and minimize user fatigue.

Sub-array technology

The dedicated high-density probe adopts a brand-new array design technology and a unique sub-array element technology. The second cutting of independent wafers can completely control the entire process of wafer vibration, thereby reducing side lobe artifacts and enhancing the fine resolution of tissues. The boundary between adjacent strong echo reflectors is sharper. It fully demonstrates the high-resolution images brought by the high-density probe, perfectly presents the image details, and increases the accuracy of clinical diagnosis

Clinical Images
