Product introduction

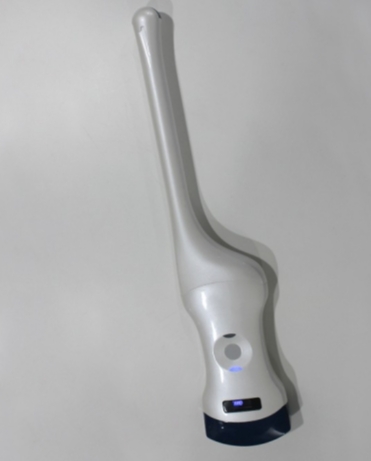

YJ-CT5L 128 Elements Wireless Ultrasound Probe( Tvs Probe+Convex Probe)

Product advantage

* Small and small size, easy to carry.

* Wireless type without probe cable, working freely.

* Waterproof design, convenient for sterilization.

* Remote diagnostic convenience, capability and easy image transfer

How it works

1.The wireless probe is a mini ultrasound scanner without a screen.

2.We minimize the components of a traditional ultrasound into a small circuit board built into the probe,

and showing image in smart phone / tablet through Wifi transferring.

3.Rotate built-inscreen probe is a wireless ultrasound probe add screen, image can both showin screenand tablet.

Image transferring through internal wifi from probe, no need external Wifi signal.

Usage

1. For iPhone/iPad, please search “WirelessUSG” in Appstore and download; For Android,

please download from our website or copy from another smart phone/tablet.

2. Press the probe button to start up, then open the Wi-Fi of the smart phone/tablet,

select the Wi-Fi from the probe, and enter the password as the probe serial number inlower case letters

(e.g: SN: C1234567, the password is C1234567, don’t input “SN”).

3. Open the installed software and begin use. Reminder: A long button press is shutdown and a short press is freeze.

■Clinical value

Precision medical visualization tool, first aid quick examination, basic examination,

wireless ultrasound probe is not only help the medical workers to improve workingefficiency,

reduce labor intensity and working pressure, but also improve diagnostic confidence and treatment.

Minimize diagnostic and treatment errors, complications, sequelae, medical accidents and disputes.

■Application directions

1. Visualization tools: invasive intervention guide, surgical and therapy guidance.

2. Emergency inspection: ER, ICU, Wild First Aid, battlefield rescue.

3. Preliminary examination: Ward Inspection, primary clinic examination,

medical examination, health screening, home care, family planning, etc.
4. Remote diagnosis, consultation, training: works on smart phone or tablet, easytele communications.

■Applicable Clinic

Anaesthesia, pain, ICU, urology, nephrology, cardiology, rehabilitation, orthopedics,

gynaecology, reproductive, obstetrics, neonatology, pneumology, gastroenterology,

hepatological surgery, general surgery, vascular surgery, thyroid surgery, skull surgery,

neurology, transplantation, ophthalmology, dermatology, emergency, nursing, inpatient,

physical examination, and ER ambulance, primary care, family planningcenters, family medicine,

home care, nursing home, prisons, plastic surgery, small needle knife/acupuncture treatment clinic,

sports medicine, battle field ambulance, disaster ambulance.

Technical specifications

Specifications
Probe Head	R60Convex+R13Transvaginal
Scanning mode	Electronic array

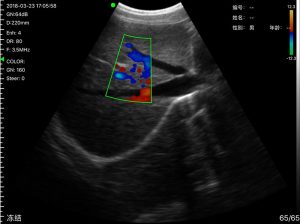

Display mode	B, B/M, color doppler version with B+Color, B+PDI, B+PW
Probe element	128
Channel of RF circuit board	32
Probe frequency and scan depth, head radius/width, scan angle(convex)	Convex head 3.2MHz/5MHz, 90/160/220/305mm,60mm, 60°; Transvaginal head 6MHz/8MHz, 30/60/90/120mm, 13mm, 149°
Image Adjust	B Gain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF
Noise reduction	0-1-2-3-4
Cine play	auto and manual, frames can set as 100/200/500/1000
Puncture assist function	the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement.
Gain	30db-105db
Dynamic Range	40/50/60/70/80/90/100/110
Image/Video Storage	Store on mobile phones, Tablet PC
Measure	distance, area, obstetrics and other
Power	by built-in lithium battery, 4200mAh
Battery working time	3 hours
Size	156mm×60mm×20mm
Net Weight	220 g
