Digital X Ray Film Printer

* The KX-410 Dry Imager is a thermo-graphic film processor designed for digital radiography imaging.It is the one and only domestically engineered medical dry thermal imager.

* The KX-410 series Dry Imager uses the latest direct dry thermal imaging technology which accommodates for a full range of applications, including CT, MR, DSA and US, as well as CR/DR applications for GenRad,Orthopaedics, Dental Imaging and more.

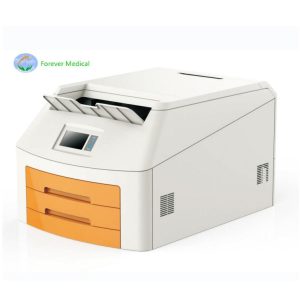

KX-410 Digital X Ray Film Printer

Introduction of Portable X Ray Film Printer

* The KX-410 Dry Imager is a thermo-graphic film processor designed for digital radiography imaging.It is the one and only domestically engineered medical dry thermal imager.

* The KX-Series Dry Imager dedicates to precision in diagnosis with its outstanding image quality, and offers affordable imaging catering to your needs.

Features：

- Dry thermal technology
- Daylight load film cartridges
- Double tray, supports 4 film sizes
- Speed printing, higher efficiency
- Economical, stable, reliable
- Compact design, easy installation
- Straight forward operation, user-friendly

Usage

* The KX-410 series dry imager is a medical imaging output device. It is engineered to achieve its optimal performance when used with KX-410 medical dry films.
* Different from the old method of film processors, our dry imager can be operated under daylight condition.

* With the elimination of chemical liquid, this thermal dry printing technology is significantly more environmentally friendly.

* However, to ensure the quality of output image, please keep away from heat source, direct sunlight, and acid and alkaline gas such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde, etc.

Technical Parameter

Print Technology	Direct thermal (dry, daylight-load film)
Spatial Resolution	320dpi (12.6 pixels/mm)
Grayscale Contrast Resolution	14 bits
Film Tray	Two supply trays, 200-sheet capacity total
Film Sizes	8’’×10’’, 10’’×12’’, 11’’×14’’, 14’’×17’’
Applicable film	Medical Dry Thermal Film (blue or clear base)
Interface	10/100/1000 Base-T Ethernet (RJ-45
Network Protocol	Standard DICOM 3.0 connection
Image Quality	Automatic calibration using built-in densitometer
Control Pane	Touch Screen, Online Display, Alert, Fault and Active
Power Supply	100-240VAC 50/60Hz 600W
Weight	50Kg
Operating Temperature	5℃-35℃
Storage Humidity	30%-95%
Storage Temperature	-22℃-50℃
