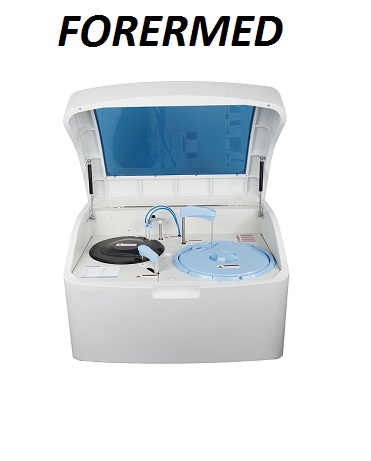

Throughput constant 180 T/h or 300T/h,best for middle or small size hospital Closed integrated photovoltaic systems, no mechanical parts,maintenance free.
Random access, discrete automatic biochemistry analyzer, insert emergencyat any time
High performance and reasonable price, It is the best economical choice from semi-auto upgraded to fully-auto analyzer
Probe performance: Liquid level detection, all-round anti-collision protection
and inventory checking, have automatic stop and alarm prompt for an obstacle
Probe cleaning: Automatic washing for both interior and exterior
Discrete, random access, fully automated
Up to constant 200 tests per hour
Optional for external bar code reader
30 positions for samples and 60 positions for reagents
Automatic probe cleaning, liquid level detection, collision protection
Reversed optic system with 8 wavelengths: 340-670nm
Refrigerated reagent and sample compartment
|
Model |
YJ-180 |
|
Wavelength |
340nm、405nm、 450nm、 510nm、546nm、578nm、 630nm、 670nm |
|
Absorption range |
0~4.0Abs (10mm conversion) |
|
Resolution |
0.0001 Abs |
|
Programming |
Open system with user defined profiles and calculation chemistries |
|
Reagent/Sample tray |
60 positions for reagents and 30positions for samples in refrigerated compartment (4~12℃） |
|
Reagent volume |
20-500μ, step by 1ul |
|
Operation system |
Windows XP SP2 or SP3/Windows 7 Home Basic |
|
Sample volume |
2-100ul, step by 0.1ul |
|
Probe cleaning |
Automatic washing for both interior and exterior Carry-over < 0.1% |
|
Power Supply |
200~240V 50/60HZ 600W or100~120V 60HZ 600W |
|
Temperature |
15-30°C |
|
Humidity |
35- -80% |
|
Water consumption |
7L/hour |
|
Cuvette |
Optical length 5mm |
|
Dimension |
790mm(w)x580mm(D)x560mm(H) |
|
Reaction volume |
150~500ul |
|
Reaction temperature |
37℃ |
|
Temperature fluctuation |
+0.1°C |
|
Mixing System |
Independent mixing bar |
|
Throughput |
Automatic, Discrete, Random AccessSTAT sample priority;Up to 200 constant tests/hour |
|
Light Source |
Halogen- tungsten lamp |
