*Simplify the workflow
One key positioning, move to the designated position automatically;
Auto-mirror,body posture,position memory and mirror placement.
*Friendly interface
The software with friendly interface;
Large color LCD screen for convenience of observation and operation.
*Rich options
Support 1.5X and 1.8X magnification radiography component and different type options of oppression disc.
*Open the interface for easy interconnection
It is compatible with DICOM3.0, which can seamlessly interconnect with the HIS/RIS/PACS, and automatically generated the worklist.

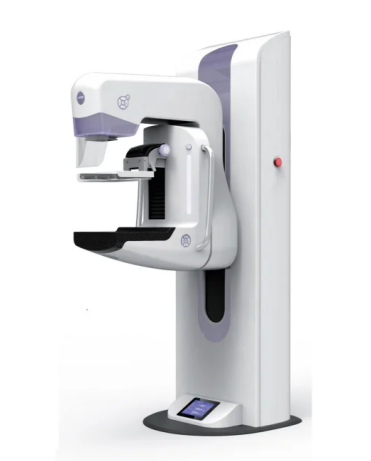

Isocenter streamline design
It can radiography all position with any angle as you like.
Vibrating grid,zoom mode,telescopic switchelectric operation,preset position,
angle remember and auto one keypositioning features make the operation more convenient and flexible
Intelligent flexible oppression Real time
Pressure display automatically stop compressing at the best position ensure the full breast completely pressed under safe
and comfortable surroundings pressure would be automatically released after the examination finished in the first time.
Graceful streamline design
Unlike the traditional medical devices with cold and inflexible feeling sour LD800 was designed from the vision of female the whole system with smooth elegance and graceful appearance to create a warm atmosphere for examination and reduce patient's sense of fear effectively
Accord with ergonomics
The console accord with the design principle of ergonomic sit makes the operation easier and more comfortable
Advantages:
*Simplify the workflow
One key positioning, move to the designated position automatically;
One key exposure, full-automatic AEC, All parameters settings and filter selection are completed automatically;
Auto-mirror,body posture,position memory and mirror placement.
*Friendly interface
The software with friendly interface;
Position show by humanoid schematic diagram, automatic generation of standardized examination protocol;
Large color LCD screen for convenience of observation and operation.
*Rich options
Support 1.5X and 1.8X magnification radiography component and different type options of oppression disc.
Support bar code reader and fingerprint recognition module;
Let the cases input and department management into the era of intelligent.
Open the interface for easy interconnection
It is compatible with DICOM3.0, which can seamlessly interconnect with the HIS/RIS/PACS,
and automatically generated the worklist.
|

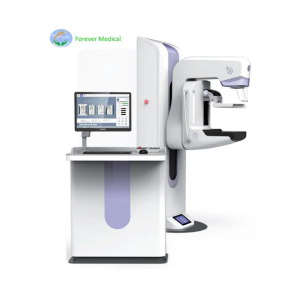

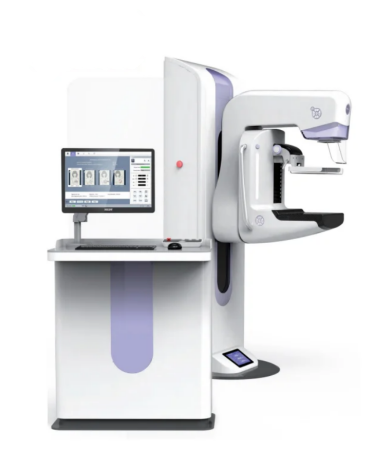

Digital Mammography System |
|||
|
High voltage generator |
Type |
High frequency inverter type |
|
|
X-ray tube voltage |
20-40kV(step 0.5kV) |
||
|
X-ray tube current |
10mA-160mA |
||
|
Maximum output power |
5kW(40kV,125mA) |
||
|
Nominal power |
4.8kW(30kV,160mA,0.1s) |
||
|
Radiograph time |
0.005-10s |
||
|
mAs |
0.5mAS~560mAs |
||
|
Minimum mAs |
0.5mAs(50ms 10mA) |
||
|
Maximun mAs |
560mAs |
||
|
Minimum mAs in AEC |
6.3mAs |
||
|
Exposure control |
manual ,semi-auto,auto |
||
|
Radiating mode |
cross-ventilation |
||
|
X-ray tube |
|
XM15 |
HMT-113 |
|
|
small focus/big focus |
small focus/big focus |
|
|
Focus size |
0.1mm/0.3mm |
0.1mm/0.3mm |
|
|
Maximum anode heat capacity |
225kJ(300kHU) |
225kJ(300kHU) |
|
|
Maximum heat dissipation |
500W |
500W |
|
|
Anode cooling mode |
oil cooling |
oil cooling |
|
|
Nominal voltage |
40kV |
40kV |
|
|
Target angle |
15° |
10°/16° |
|
|
Target material |
Mo |
Mo |
|
|
Radiation field |
18cm-50cm |
18cm-50cm |
|
|
Inherent filtration |
0.5mmBe |
0.5mmBe |
|
|
Additional filtration |
0.03mmMo |
/ |
|
|
Anode speed |
low-speed3000r/min; high-speed 10000r/min |
low-speed3000r/min; high-speed 10000r/min |
|
|
Anode input power |
1.15-2KW / 4.8-9kW |
0.7-1.35kW / 2.9-4.9kW |
|
|
X-ray tube socket (C339v) |
|
|
|
|
Additional filtration |
0.03mmMo |
||
|
Weight |
13kg |
||
|
C Arm frame |
|
|
|
|
vertical range of motion |
630-1400mm,deviation±5% |
||
|
Rotation range of motion |
+195°~-155°Angular division value 1°,deviation±2% |
||
|
FID |
660mm,deviation±5% |
||
|
3D tomographic axial rotation |
+30°~-30°deviation±2% |
||
|
Rotate Mode |
power-drive double speed rotate |
||
|
|
Preset angle and memory function |
||
|
Oppression plate |
range of motion |
245mm,deviation±10% |
|
|
range of motion in 1.5 times platfo |
150mm,deviation±10% |
||
|
range of motion in 1.8 times platfo |
75mm,deviation±10% |
||
|
Operation mode |
Manual/Auto |
||
|
Pressure range |
0-300N(Manual)150-200N(Auto) |
||
|
FPD |
|
AXS-2430 |
HMD-2430 |
|
Pixel unit |
85um |
85um |
|
|
Effective pixel size |
239.36*304.64mm |
239.36*304.64mm |
|
|
Pixel matirx |
2816*3584 pixels |
2816*3584 pixels |
|
|
Spatial resolution |
≥7 lp/mm |
≥7 lp/mm |
|
|
Cooling mode |
fan cooling |
fan cooling |
|
|
Grayscale |
≥16bit |
≥16bit |
|
|
DQE |
≥50% |
≥50% |
|
|
Grid |
|
|
|
|
Grid proportion |
5:1 |
||
|
Size |
338*264mm |
||
|
line pair |
36lp/cm |
||
|
focus |
66cm |
||
|
Collimator (HMC-915) |
Inherent filtration |
0.02mmAl |
|
Additional filtration |
0.03mmMo /0.025Rh |
|
|
Illumination in max SID |
>160Lux |
|
|
Timer |
Button/Auto,30s timer |
|
|
Indicator light |
LED |
|
|
maximum radiation leakage |
<40mRh |
|
|
Light field switch |
Auto |
|
|
Weight |
3.6kg |
|
|
Image Acquisition Workstat |
Screen size/resolution |
19",Resolution 1280*1024,Contrat 1000:1 |
|
Memory |
≥8G |
|
|
Hard disk |
≥320G |
|
|
OS |
Win7 |
|
|
Image format |
DICOM3.0(can connect with RIS) |
|
|
Image storage capacity |
≥20000 images |
|
|
|
mamual input patients' date or download form HIS/RIS through DICOM Worklist |
|
|
|
CD-R writer (storage image) |
|
|
|
Choosing Breast implants Function |
|
|
|
Integrated design with High voltage generator, exposure specification setting in workstation |
