Product Description

Feature

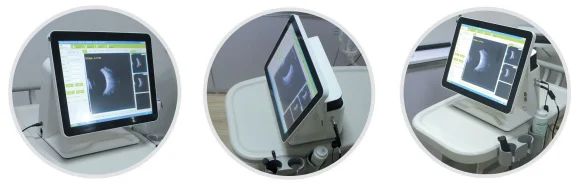

- 15 inch LED touch screen, all-in-one, pretty, portable

- Integrated Image Capture

- Integrated Patient Database

- Integrated Report Editor

- Can work with battery

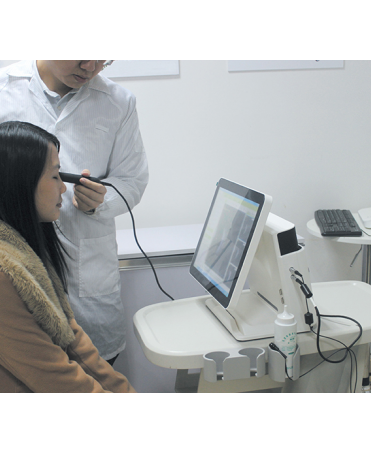

Applications: Hospital, Clinic, Veterinary

Introduction

* SAB-500 A/B Scan with normal, vitreous body enhancement, retina observation mode,

mainly used for diagnosis of intraocular diseases, display the location,

shape range of the focus of infection and the relationship with the surrounding tissue.

* Can be diagnosed vitreous opacity, retinal detachment, eye base tumors etc. eye diseases.

* A scan is used to measure anterior chamber depth, lens thickness, axial length,

calculate diopter of implant IOL as well.

Technical specifications

B-scan
Display Mode	B, B+A, B+B, A
Probe Frequency	10MHz / 20MHz (optional), Magnetic driven, noiseless
Scanning Mathod	Mechanical sector scan
Scanning Angle	53 degree
Resolution	axial ≦0.2mm, lateral≦0.4mm
Gain	0-98db adjustable
Zoom	34mm-60mm, 6 steps selectable
TGC	-30db-0db dynamic, 6 points manually adjustable
Variable Delay Depth	0-15 mm
Post Processing	4 groups of curves ( Linear, Logarithmic, Exponential, S-curve)
DIstance & Area Measurement
Dynamic Replay for 5.6 sec
56 images dispalyed continually or separately
probe hibernation	over 10 minutes
Gray scale	256 levels

ophthalmic ultrasound scanner

		A-Scan
	Probe	10MHz with Fixation Red Light
	Resolution	0.01mm
	Biometry Accuracy	≦±0.06mm
	Gain	≧98dB with an adjustable range of 0-55 dB
	Measuring Range	15-39mm
	Measuring Parameters	Anterior Chamber Depth, Lens Thickness, Vitreous Length and Axial Length
	Measuring Method	Immersion and Contact
	5 Different Measuring Modes	Automatic ( for Normal, dense Cataract, Aphakic and special), Manual
	Calculation of 8 groups' average with standard Deviation
	IOL formula	SRK/T, SRK-II, BINKHOST-II, HOLLADAY, HOFFER-Q and HAIGIS

Others:

Display Mode: B, B+B, B+A, A
Hint: Preset keyword
Case Search: Multi-keywords
Screen: 15 inch LCD
Built-in battery: Can use 4 hours
