Back spectro photometry
8 standard filters
Large LCD, built-in thermal printer
Sold in the market for over 16 years, stable performance

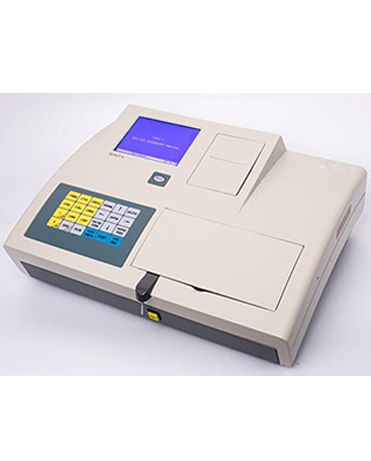

YJ-S5 adopts back spectrophotometer, 8 hard-coated filters, independent signal processing circuit for each wavelength, and the filter selection is done electronically without mechanical movement. The sealed solid-state optical system provides low dust and moisture contamination, and a hard-coated filter for long life. A titanium alloy flow cell is also applied, which has a small capacity and reduces cross-contamination. 1000 patient test data and 200 test procedures can be saved. Using Clock CMOS chip, no noise, fast speed and easy maintenance. The screen uses a 265x65 dot matrix backlight LCD, and displays character curves at the same time. With reasonable software, programmable biochemical detection menu and self-test procedures.
Technical Specifications:
| Analysis method | kinetics, end point, two point, etc. |
| Light source | halogen lamp 20w/12V, life time up to 2000hr |
| Optical system | 340-800nm |
| 8 standard filter | 340, 380, 405, 492, 510, 546, 578, 630nm wavelength, accuracy;±2nm |
| Abs range | -2.500—2.5Abs, resolution,:0.001Abs |
| Flow cell | titanium quartz alloy, 33uL; optical path:10mm |
| Temperature | PELTIER elements, 25,30,37℃±0.1℃ |
| Precision | error<1%, drift<5mAbs/hr |
| Printer | thermal printer, 58mm width paper |
| Keyboard | 24 keys touch keyboard |
| Interface | RS232 serial |
| Dimensions | 460(L)x380(W)x200(H)mm |
| Weight | 9Kg(net), 10Kg(gross) |
Working Conditions：
| Temperature | 0℃-40℃ |
| Humidity | 5-80% |
| Power supply | AC220V±15%, 50Hz, 70VA |
Main Test Items List:
| Liver function | ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh3 γ-GT |
| Renal function | BUN CRE UA CO2-CP |
| Lipids | T-CHO TG HDL-C LDL-C |
| Cardiac function | CK CK-MB LDH HDBH |
| Others | GLU K Na Cl Ca |
