7 inch Color LCD , Touch screen
Flow cell and Cuvette test mode compatible
Real time curve showing
7 wavelength , 90 test item pre-programmed
Memory for 10,000 sample results
Light source hibernate function making lamp life longer
RS232 interface, PC connecting
Liver function: ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh3
Renal function : BUN CRE UA URE CO2-CP γ-GT
Lipids: T-CHO TG HDL-C LDL-C
Cardiac function: CK CK-MB LDH
Immune proteins: IGA IGG IGM C3
Others: GLU HGB AMS
|
Test mode |
Kinetic, End point, Two point, Absorbance |
|
Wavelength |
7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position |
|
Wavelength precision |
±2 nm, width ≤ 10nm |
|
Absorbance range |
0~4.500 Abs |
|
Absorbance precision |
outside 0.0001 Abs , inside 0.00001 Abs |
|
carry over |
< 1% |
|
Repeatability CV |
< 1% |
|

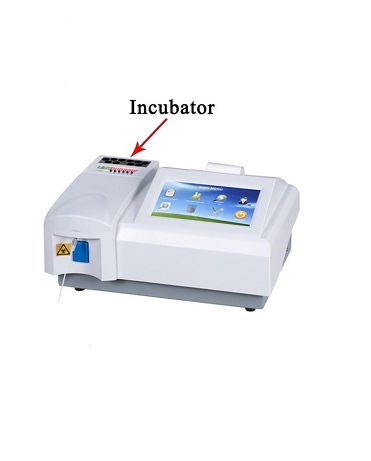

Incubator |
37℃、30℃、25℃、Precision : ±0.1℃ |
|
Sample volume |
0~3000 ul (≥500uL recommend) |
|
Data Storage |
≥10000 |
|
Quality control curve |
X 、SD、CV%、L-J quality control curve for every test item |
|
Flow cell |
32ul quartz glass, 10 mm |
|
Lamp |
Philips 6V 10W Halogen Lamp with long life |
|
Screen |
7 inch color LCD |
|
CPU |
ARM series high speed micro CPU |
|
Printer |
Internal thermal sensitive printer |
|
Interface |
RS-232 |
|
Temperature |
0℃ ~ 40℃, |
|
Humidity |
≤80% |
|
Power supply |
100~240VAC，50-60Hz，100VA |
|
Dimension |
340(L)*270(W)*160(H) |
|
Weight |
5 kg |
