1. Random access
2. Up to 30 samples can be scanned simultaneously
3. Throughput: up to 60 samples /hour
4. Temperature compensation refer to 18ºC according to Westergren method
5. ESR curve display and print-out
6. Touch screen , large LCD display
7. Built-in internal thermal recorder

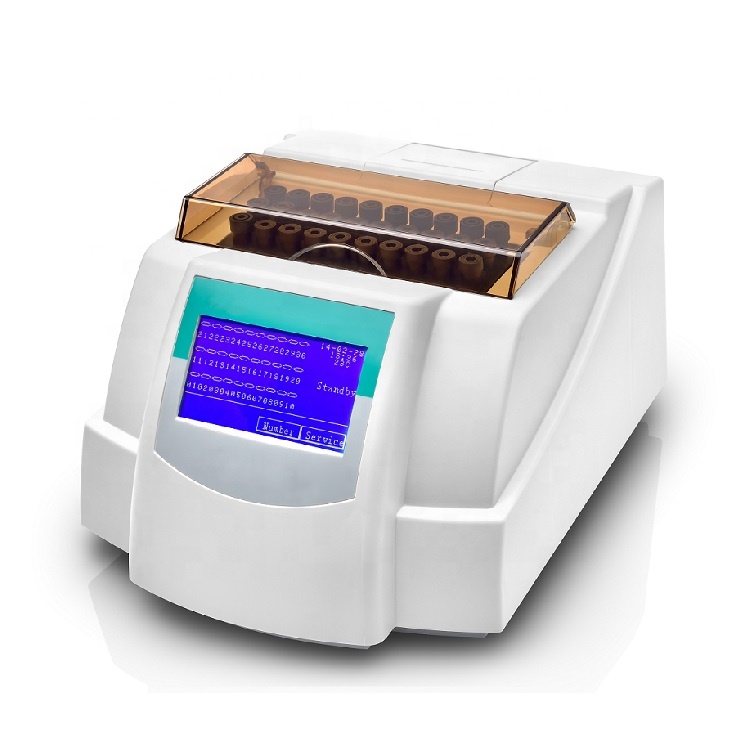

YJ-ESR30 ESR Analyzer
Features
Specifications
Area of application Erythrocyte sedimentation rate analysis
Measuring principle Infrared barrier
Reading channel 30
Loading capability up to 30 samples at a time
Loading pattern random
Measuring time 30 minutes or 60 minutes selectable
Throughput up to 60 samples per hour
Analysis result in Westergren ESR value (mm /1h)
Temperature compensation refer to 18°C automatically
Reading resolution 0.2 mm
Reproducibility < 0.3% or ±2mm /1h
Result resolution 1mm/1h
Blood level range 50mm~64mm
Display LCD screen with backlight
Input Touch screen
Interface RS-232 serial port
Print internal thermal recorder
Power supply AC 220V/110V ±10%, 50/60 Hz
Power 50W
Operation conditions Temperature : 15C°~32°C
Humidity : ≤85%
Dimension : 400mm×300mm×200mm (L×W×H)
Net weight : 11.5 kg
