YJ-GBS9 Fiber ENT Nasopharyngoscope Endoscope

What are the features of our laryngoscope?

The multifunctional intubation Portable flexible endoscope using polycarbonate new composite handle reasonably designed the clamp hole position, the washable pipe system can protect the lotion unobstructed, to prevent the pipeline blockage.

When doing surgery, the suction valve is convenient, removable, safe and reliable, so that users do not feel fatigued in the operation.

Products Description:

The multifunctional intubation Portable flexible endoscope using polycarbonate new composite handle, reasonably designed the clamp hole position, the washable pipe system can protect the lotion unobstructed, to prevent the pipeline blockage. When doing surgery, the suction valve is convenient, removable, safe and reliable, so that users do not feel fatigued in the operation.



The excellent operation of the traction device can be easily transferred and adjust the bending parts to upward, downward. Can smoothly and fastly reach the desired site of observation. And timely and accurate detection of diseased tissue.



The multi-function Portable flexible endoscope, electronic zoom, mediation, easy removal, and disassembly for cleaning and disinfection



The scope with the multi-coated high transmittance imaging system, the round field of view, wide viewing angle, wide field of view.

Bending operation:  Traction chain structure, whole sealed waterproof

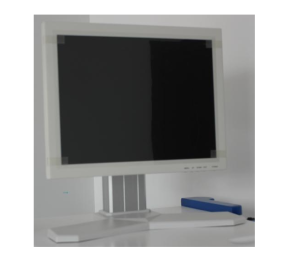

Image display: Two image display optional

Quality certification :

Warranty: One year(free), permanent repairs (not free)

Package size :64*18*48cm (G.W.:5.0kgs)





	Item	ENT / nasopharyngoscope endoscope-Adult
	Diameter of distal- end	Φ5.2mm
	Diameter of insert tube	Φ5.0mm
	Clamp aperture	Φ2.0mm
	Working length	410mm
	Total length	670mm
	View of field	90 º
	Depth of view	3-50mm
	Tip deflection	up 180° down 130°
Remark	We can provide OEM service, technical details can be customized.
