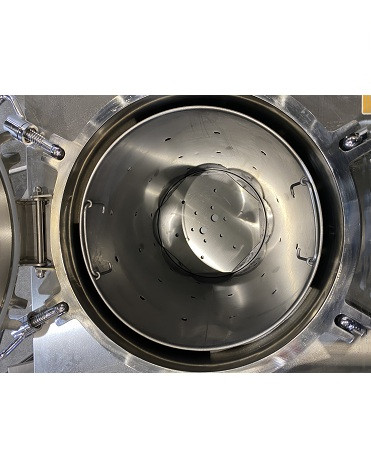

The vertical steam sterilizer is a safe and automatic control program equipment. The shape is square shape vertical structure. It is made of shell, sterilization room, steam generator, pipeline system and control system. Advantages: beautiful shape, easy operation, safe usage, saving energy and durable, with multiple functions, heating rapidly, effective sterilization result.
1. Hand wheel translation type quick opening structure
2. High quality stainless steel material
3. Microcomputer automatic control, arbitrary setting sterilization parameters
4. Safety interlocking device
5. Digital display and Touch type button
6. Standardized test interface
7. Self expanding seal
8. With automatic protection function: over temperature protection; over pressure protection self discharge; low water level protection, anti dry
9. With stainless steel basket
10. Sterilization end buzzer reminder, automatic stop
11. Automatic discharge of cold air, automatic exhaust steam after sterilization
12. Optional external printer
|
Model Technical parameter |
YJ-LX35 |
YJ-LX50 |
YJ-LX75 |
YJ-LX100 |
YJ-LX120 |
YJ-LX150 |
|
Volume |
35L |
50L |
75L |
100L |
120L |
150L |
|
Power |
3.5kW |
3.5kW |
4.5kW |
4.5kW |
4.5kW |
6.0KW |
|
Voltage |
AC 220V、50HZ |
|||||
|
Rated working pressure |
0.22Mpa |
|||||
|
Rated working temperature |
134℃ |
|||||
|
Sterilization temperature |
50℃~134℃ |
|||||
|
Sterilization time setting range |
4~120 min |
|||||
|
Drying time setting range |
0~240min |
|||||
|
Chamber volume |
Ø300×500 |
Ø350×525 |
Ø400×625 |
Ø450×650 |
Ø450×760 |
Ø500×780 |
|
Bucket dimension |
Ø280×400 |
Ø330×480 |
Ø380×560 |
Ø420×540 |
Ø420×660 |
Ø470×720 |
|
Basket dimension（optional） |
Not optional |
Ø320×240×2 |
Ø360×280×2 |
Ø410×300×2 |
Ø410×350×2 |
Ø460×350×2 |
|
Outer dimension |
400×400×860 |
480×480×960 |
525×567×1020 |
555×555×1080 |
555×599×1200 |
605×649×1210 |
|
Packing size (L× W× H )mm |
550×500×1030 |
580×630×1100 |
630×680×1190 |
690×650×1230 |
690×650×1330 |
750×700×1370 |
|
Gross/net weight |
58/41KG |
75/53KG |
82/61KG |
103/78KG |
108/82KG |
116/90KG |
