15 inch LED multi-parameter Patient Monitor-Henan forever Medical Co., Ltd.

YJ-F15 Multiparameter Patient Monitor

Introduction of patient monitor YJ-F15:

Newly advanced A9 main board with Linux OS, calculating speed is 4 times faster than traditional products. Support storage of 2160 hours trend table and graph review, 2 hours waveform review, 2000 groups NIBP review and 2000 alarm events review.

The YJ-F15 patient monitor is designed to match the pace and unique needs of adult, pediatric, and neonatal intensive care; anesthesia and peri-operative care; OR and cardiac care environments. This product is used in hospital, clinic, ICU, Operation room.

Input device interface of patient monitor YJ-F15:

This optional interface provides an USB ports to enable the monitor to be connected to off-the-shelf input devices.

Mouse: any specified trackball or USB mouse may be used for navigation and data entry.

Computer keyboard: an USB computer keyboard can be used for data entry instead of the on-screen pop-up keyboard.

Specification of the of patient monitor YJ-F15:

patient monitor Configuration:

Feature	F15
Sop2	Standard
NIBP	Standard
PR	Standard
ECG	Standard
TEMP	Standard
RESP	Standard
2 IBP	Optional
EtCO2 main stream/ side stream/Micro stream	Optional
Nellcor Spo2	Optional
Multigas/O2	Optional
VGA	Optional
Printer 50mm	Optional
Wall mount/Trolley	Optional
Central Station	Optional

Production Details of the patient monitor YJ- F15:

Body	15 inch high-brightness TFT LED
	Support display 9~13 waveforms
	Support 7 channel ECG waveform display simultaneously
	Optional touch screen

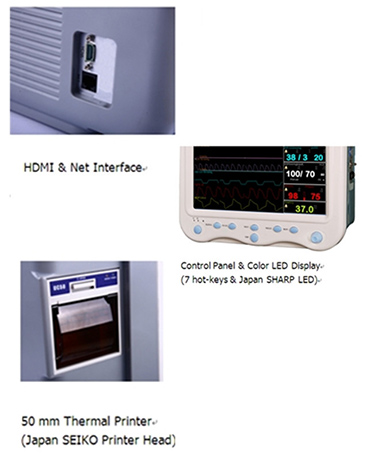

	Optional HDMI output
Printer	Built-in high-speed 50mm thermal printer (Brand: SEIKO, Japan)
Central System	Optional Build-in wireless network module, supporting wired or wireless connection to the central monitoring station.
Central System	Optional Support HL7 (Health Level Seven)
Alarm	Three-level acousto-optic alarm
	Sensor-off alarm
	Paper out alarm
	Support alarm review
	Support alarm pause
Operating System	Support operation with mouse and computer keyboard (option)

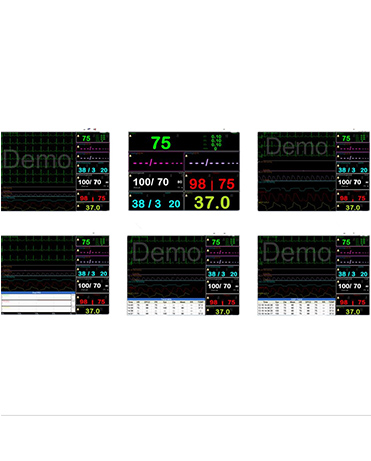

	Multi- display mode to meet different clinical requirement, including standard, big font, Oxy CRG, trend graph, NIBP review and full leads ECG interface.
	NIBP self-test mode: including over pressure test, static pressure test and air leakage test.
	Generate ID automatically when register a new patient
	Support medical history search by patient ID, name and mobile number
	18 types of Arrhythmia analysis and real-time S-T segment analysis and pacemaker detection
	Drug calculation and tit-ration table
	Support multi- language display
	Support online software upgrading by net/USB
Interface	Transducer socket
	ECG
	SPO2
	NIBP
	IBP 1 / IBP 2
	TEMP 1
	TEMP 2 / Mainstream EtCO2 / AG (multi-gas)
	Side stream EtCO2
LAN / Central monitor system interface	The LAN port is for connecting the monitor to a central monitor system network.
Input device interface	Knob (Standard)
	USB interface (optional)
	Touch screen (optional)
