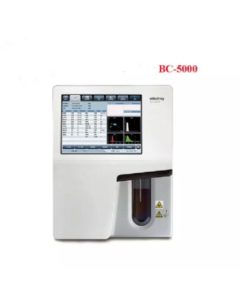

Mindray BC-5000 Auto Hematology Analyzer

Features:

1.WBC 5-part difffferentiation, 23 reportable parameters, 3 histograms and 3scattergrams

2.Whole blood mode, Capillary whole blood mode and Prediluted mode

3.Tri-angle Laser scatter + Chemical dye + Flow cytometry technology

4.Dedicated optical counting channel for Basophil measurement

5.Powerful capability of flflagging abnormal cells

6.10.4 inch large TFT touch screen with user-friendly software

7.Large storage capacity: up to 20,000 samples

8.Throughput: 40 samples per hour

9.Sample volume is only 15μL which is ideal for pediatrics

Technical specifications

Specification
Principles	Impedance method for RBC and PLT counting Cyanide free reagent for hemoglobin test Flow Cytometry (FCM) + Tri-angle laser scatter + Chemical dye method for WBC 5-part difffferential analysis and WBC counting



Parameters	23 parameters: WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT 3 histograms for WBC, RBC and PLT 3 scattergrams for WBC difffferential




Reagent	Diluent, DIFF lyse, LH lyse, probe cleanser
Sample Volume	Prediluted mode 20 μL Whole blood mode 15 μL Capillary whole blood mode 15 μL


Throughput	40 samples per hour
Communication	LAN port supports HL7 protocol
Display	10.4 inch TFT Touch Screen
Printout	External Laser printer / Inkjet printer, various printout formats and user-defifined formats
Interface	USB, LAN Support uni-directional LIS
Storage	Up to 20,000 results including numeric and graphical information
Dimension	Depth(400 mm) x width(320 mm) x height(410 mm)
Weight	24kg
Operating Environment	Temperature: 10°C~30°C Humidity: 20%~85% Humidity: 20%~85% Power requirement: 100V-240V 50Hz/60Hz

Why do we need 5-part hematology analyzers?

5-part hematology analyzers can provide Lymphocyte, Monocyte, Neutrophil, Eosinophil and Basophil results for every sample. Additionally, the 5-part results are less affffected
by abnormal cells.

5-part hematology analyzers provide more detailed and specifific flflag information. Users are able to clearly understand the clinical signifificance of flflags and make a decision.
