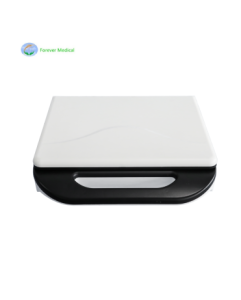

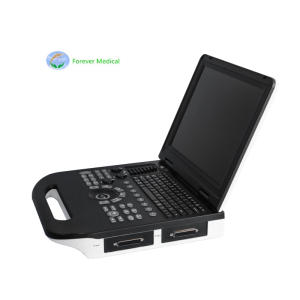

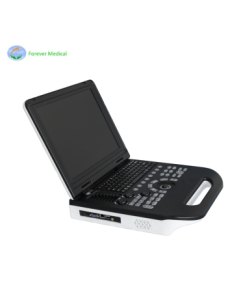

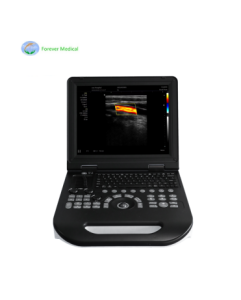

Portable 3D color doppler ultrasound scanner

Product Name

Laptop Color Doppler Ultrasonic Diagnostic System

Display

15 inch LCD screen

Probe Interface

2 probe connectors, with automatic identification function

Battery Capacity

Rechargeable lithium battery

Display mode

B、 B/B、4B、B+M、CFM、B+CFM、PDI、B+PDI、PW;

Hard disk

Built-in 128G solid state drive

Function

CFM、B+CFM、PDI、B+PDI、PW  triple synchronization
5 levels Image optimization
Digital beam-forming
Un View- speckle reduction
Tissue harmonic imaging
PW automatic envelope measurement
IMT (Carotid intima-media thickness)automatic envelope measurement
Biopsy guide
Build-in editable report page

Measurement

General measurement Depth, Distance, Trace Length, Ratio (D),
Area: Ellipse, Trace
Volume: 3-Distance, Ellipse, EDist
M mode: Distance, time, slope, Heart Rate
Clinical measurement package: Abdomen, OB, Gynecology, Cardiac, Urology, Small Parts

Imaging parameters

Imaging processing Persistence, Gamma, edge enhancement, compression curve, gray, 16 kinds of pseudo-color processing, focuses, canvas, Fov, contrast, brightness, Invert b/v, Mirror, Reverse

Puncture guide

3.5MHz convex array probe can display puncture guide in B mode

PW parameters

PW processing, spectrum reversal, envelope threshold, automatic envelope, volume

Movie playback

200-2000 frames max auto/manually play back

Language

Chinese, English, Spanish, Russian, French, Portuguese, Germany

Acoustic power

3 levels adjustable real-time display MI/TI

Measurement

Professional general, OB/GYN, small organs, etc software measurement package

Zoom

10*magnify

Dynamic range

80-280dB

Interface

VGA, 2 USB ports, HDMI port, DICOM port, LINE OUT port

Body mark

More than 64 body marks for versatile application

With body position markers

Grey scale:

level 256

Maximum display depth

400mm

Resolution

1024*678

Host size

370mm×382mm×90mmm (length × width × height)

Main feature Quick Outlook

1. 15 LCD Display,  2 activated probe connectors

2. Build-in recharge lithium battery

3. PC-platform: Windows 7 operation system

4. Display modes: B、 B/B、4B、B+M、CFM、B+CFM、PDI、B+PDI、PW

5. THI imaging technology

6. Application mode : OB,GYN, Superficial organ, Urology, Pediatric, Cardiac etc

7. IMT automatic measurement and display results

8. Interface Port: HDMI, VGA, DICOM, USB, Line Out

9.Multiple Language: English, Spanish, Portuguese, Russia, French, Chinese, Germany

10. 3D software for optional

Standard Configuration

Option Configuration

1

One host machine + 2 probe connectors

Other probes

2

One convex array probe:Center Frequency=3.5MHZ

Printer(thermal printer or laser printer both okay)

3

One power adapter

Trolley

4

Li-ion battery

Aluminum suitcase
