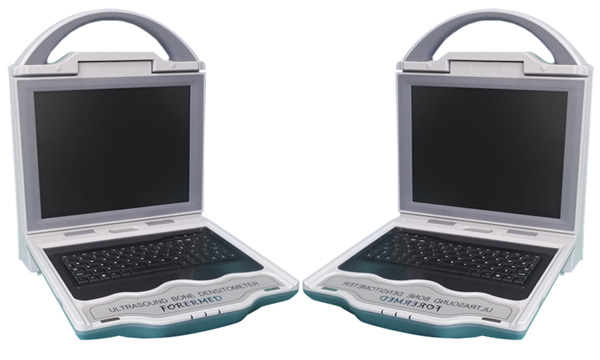

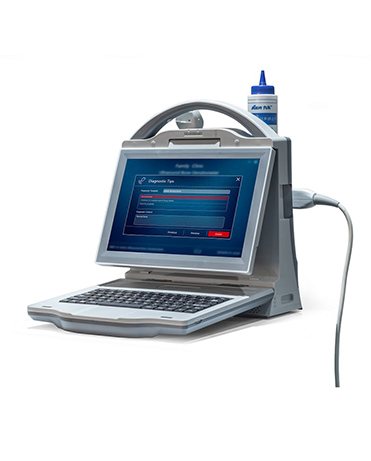

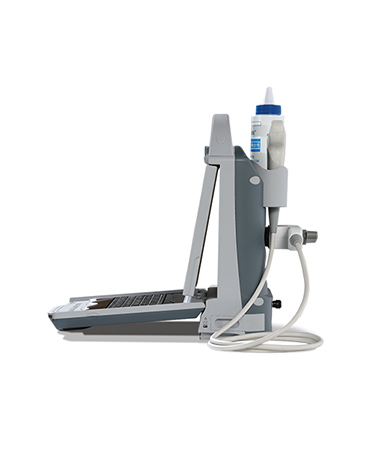

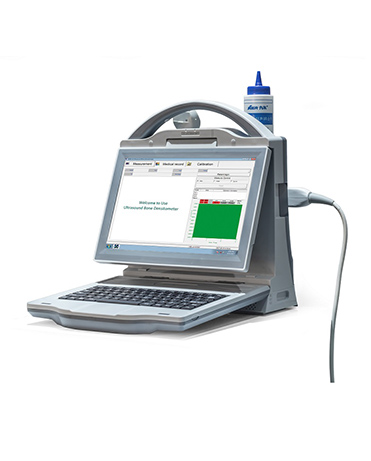

Portable bone Densitometer-Henan forever Medical Co., Ltd.

Technical features:

1、Using the full dry technology, makes diagnostic more convenient.

2、The probe adopt the Technology of the United States DuPont, makes the probe to receive higher sensitivity and better reception.

3、the better ultrasonic frequency on the measuring position, with better penetrability, more effective signal

4、use the ultrasonic axial conduction technology, double emission and double receiving, it can provide more effective data

5、With innovative algorithm, effectively remove clutter and jamming signal, to get the valid data.

6、With a special correction system, to correct the system error effectively, get more accurate measurement results.

7、multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.

Specifications of Ultrasound Bone Densitometer YJ-UBD3A：

Analysis Data	4.T- Score, Z-Score, Age percent[%], Adull percent[%], BQI (Bone quality Index ), PAB[Year] (physiological age of bone), EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk).
Measurement Accuracy	≤0.25%
Measurement Reproducibility	6.≤0.25%
Measurement time	<25 seconds
Probe frequency	1.20MHz
Date analysis	it adopt a special intelligent real –time data analysis system, it selects the adult or child databases according to the age automatically .
Temperature control	Perspex sample with temperature instructions
repot mode	color
Report format	supply A4, 16K ,B5 and more size report
Computer configuration	19.CPU dual core, 4G memory, electronic hard disk, wireless mouse
Monitor	10.4’ color HD color LED monitor.
Fluid Protection	main unit waterproof level IPX0, probe waterproof level IPX7
Main unit weight	25.< 4kgs, easy to carry
