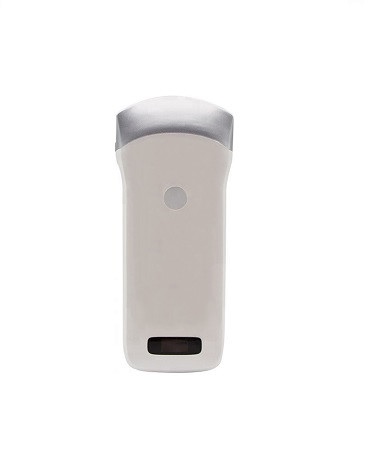

YJ-UP3C Wireless Convex array wireless probe

Product introduction

How it works

The wireless probe is a mini ultrasound scanner without a screen. We minimize the components of a traditional ultrasound into a small circuit board built into the probe, and showing image in smart phone / tablet through Wifi transferring. Rotate built-in screen probe is a wireless ultrasound probe add screen, image can both show in screen and tablet. Image transferring through internal wifi from probe, no need external Wifi signal.

Product advantage

Small and small size, easy to carry.

Wireless type without probe cable, working freely.

Waterproof design, convenient for sterilization.

Remote diagnostic convenience, capability and easy image transfer

Product series

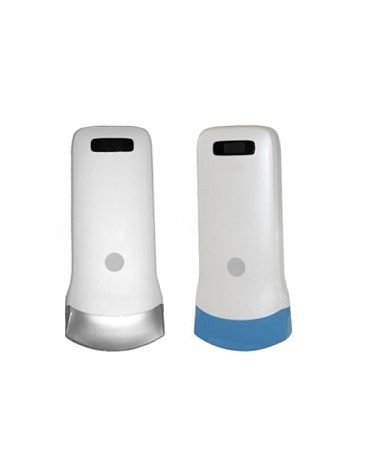

Gray head: low configuration 80 Elements B/W Ultrasound Scanner; Light blue head: 128 Elements B/W Ultrasound Scanner; Dark blue head: 128 Elements Color Doppler Scanner; White color head: 192 Elements Color Doppler Scanner. We can customize colors for large quantity order.

Specifications

- Scanning mode: Electronic array

- Frequency: 3.5/5.0MHz

- Depth: 90mm-305mm, adjustable

- Radius of curvature and angle of scanning: Convex R60/60°

- Screen size of built-in screen probe: 3.5 inches

- Display mode: B, B/M, color, PW, PDI

- Image adjustable: gain, focus, anti-phase pulse harmonics, noise reduction, DYN

- Puncture assist function: in-plane puncture guide line, external puncture guidance automatic blood vessel measurement, and the enhance needle visualization function needle point development.

- Battery working time: 3 hours

- Charging mode: USB charging or wireless charging.

- Measurements: Distance, area, circumference, angle heart rate, obstetrics.

- 4D bladder probe automatic volume measurement: range 10ml~2000ml, error < 5%, speed 2s.

- Size: 156mm×60mm×20mm

- Weight: 278g

- Image frame rate: 20f/s

- Connection type: probe connects to smart phone/tablet by built-in wifi

- Wifi type: 802. 11n/2.4G/5G/450Mbps

- Consultation function: remote internet consultation through smart phone and tablet, as well as multi-cell phone/tablet for consultation.

- Working system: Apple iOS, Android and Windows

Usage

1. For iPhone/iPad, please search “WirelessUSG” in Appstore and download; For Android, please download from our website or copy from another smart phone/tablet.

2. Press the probe button to start up, then open the Wi-Fi of the smart phone/tablet, select the Wi-Fi from the probe, and enter the password as the probe serial number in lower case letters (e.g: SN: C1234567, the password is C1234567, don’t input “SN”).

3. Open the installed software and begin use.

Reminder: A long button press is shutdown and a short press is freeze.

Clinical application

■Clinical value

Precision medical visualization tool, first aid quick examination, basic examination, wireless ultrasound probe is not only help the medical workers to improve working efficiency, reduce labor intensity and working pressure, but also improve diagnostic confidence and treatment. Minimize diagnostic and treatment errors, complications, sequelae, medical accidents and disputes.

■Application directions

1. Visualization tools: invasive intervention guide, surgical and therapy guidance.
2. Emergency inspection: ER, ICU, Wild First Aid, battlefield rescue.
3. Preliminary examination: Ward Inspection, primary clinic examination, medical examination, health screening, home care, family planning, etc.

4. Remote diagnosis, consultation, training: works on smart phone or tablet, easy telecommunications.

■Applicable Clinic

Anaesthesia, pain, ICU, urology, nephrology, cardiology, rehabilitation, orthopedics, gynaecology, reproductive, obstetrics, neonatology, pneumology, gastroenterology, hepatological surgery, general surgery, vascular surgery, thyroid surgery, skull surgery, neurology, transplantation, ophthalmology, dermatology, emergency, nursing, inpatient, physical examination, and ER ambulance, primary care, family planning centers, family medicine, home care, nursing home, prisons, plastic surgery, small needle knife/acupuncture treatment clinic, sports medicine, battle field ambulance, disaster ambulance, etc.

■Example of usages

Puncture/intervention guide: thyroid ablation, neck vein puncture, subclavian vein puncture, and neck and arm nerves, canal of arantius, spine puncture, radial vein injection, percutaneous renal surgery guide, hemodialysis catheter/thrombosis monitoring, abortion, bile duct puncture, hydropsarticuli extraction, pain therapy and cosmetic surgery, urine catheterization.

Emergency inspection: internal bleeding, pleural effusion, pneumothorax, atelectasis of lung, temporal 1 posterior auricular fistula, pericardial effusion.

Daily inspection: thyroid, breast, liver cirrhosis, fatty liver, prostate/pelvics, stroke screening, retinal artery, uterus, follicular monitoring, fetus, musculoskeletal, podiatry, fractures, varicose veins, spleen, bladder/urinary function, urine volume measurement.

Support to connect various internal and remote information system, convenient to the realization of consultation.

Application in animal husbandry

- To monitor follicular development and ovulation, provide a reliable scientific basis for when to breed and increase the breeding rate.

- Ultrasound monitoring in early pregnancy, to find nonpregnant timely.

- Pregnancy monitoring can detect stillbirth, miscarriage, embryo absorption, etc.

Meanwhile it can estimate the number of embryo.

- Perinatal monitoring can determine fetal viability and whether fetal or afterbirth is exhausted.

- Postnatal monitoring of uterine recovery, diagnosis of endometritis, uterine accumulation, effusion and other reproductive disorders.
