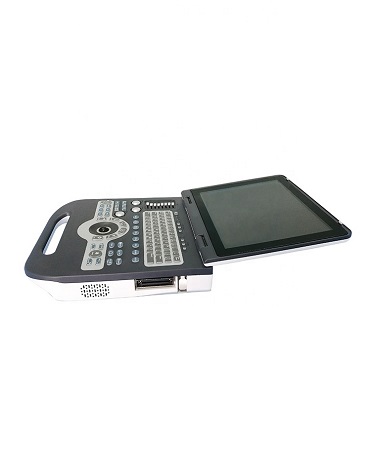

YJ-X3800 Full Digital Color Doppler System

Main Parameter

15'' LED Player.

Scanning mode: Convex, Trans-vaginal, high-frequency linear array, Micro-convex.

Modes: B.B/B.B/M.CFM.CFM/B.PDI.PDI/B.PW.

Big capacity lithium battery.

B/D dual-purpose: linear array: B/PWD; convex array: B/PWD;

Support the five languages.

Gray scale: 256 levels.

Depth display: ≥250mm;

Dynamic range:80~280dB adjustable.

IMT and PW automatic measurement function.

Self-motion optimize function.

Image multiplying factor.

Image mode: digital beam forming, tissue harmonic imaging.

picture in picture zoom in and zoom part function.

Image storage, video storage, cine loop, SSD capacity≥160G;

Frequency conversion: 2MHz-12MHz(Depending on the probe)

16 kinds of pseudo color encoding can optional.

E-zoom: magnify 2 times of real time image.

Focus position: dynamic electron focusing.

Application

Mode

Abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model 1-4, total ten models;

Output Interface

USB\Video\HDMI\VGA\DICOME\LAN\FOOT SW port.

USB used to connect USB devices; Video output, connecting video printer or monitor; DICOME transfer the images; LAN to connect the network cable;

Optional Probe

Convex

Linear

Trans-vaginal

Micro-convex
