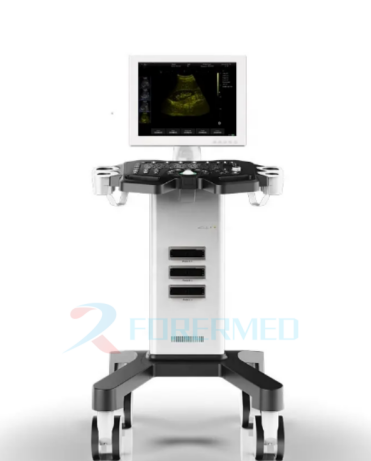

Mobile Ultrasound Machine-Henan forever Medical Co., Ltd.

YJ-370T

Full-Digital Ultrasound Scanner

IMAGE PROCESSING FUNCTION --- PSEUDO COLOR

It is a way to change the display mode of black and white images into color display.

PSEUDO COLOR

Since the human eye is not very sensitive to the resolution of gray scale levels, the sensitivity of the human eye to different echo intensities can be enhanced after the black and white images are converted to color. Subjectively, the dynamic range of the display signal is increased, and the recognizability of the image boundary is enhanced.

Detachable probe hanging slot 3 activated probe interfaces VGA, Video, and two USB interfaces

Features:

.Main screen 15" medical HD monitor

.Flexible monitor bracket

.All-in-one keypad

·Detachable probe hanging slot

.Front double pull handle

.Flexible caster, directional locking

.One-piece body structure

Optional Accessories

Special sheet metal custom printer placement box, convenient and practical, solid and reliable, effectively solve the problem of space placement.

5200mAH built-in battery, 2-3 hours endurance operation, easy to move in various clinical application scenarios.

Technical specifications

Detail Images

Basic Parameters:
Probe Depth	16 levels
Probe Frequency	5 levels
Main gain	0-100%
8 TGC	adjustable
Focus	4
Image storage	4920 images
Pseudo color	0-7
Scanning area(angle)	3 levels
Edge enhancement	0-3
Linear correlation	0-5
Gamma correction	0-7
Frame correlation	0-3
Dynamic range	0-135
Cine loop	512 frames
Body mark	97 kinds
U Disk support	FAT32 format
Image reversal	up/down, left/right, black/white
Measurement	General measurement, GYN & OB measurement package, Andrology measurement , Cardiac measurement
OB-1	GS,BPD,CRL,FL,HL,TAD,LV,OFD,AC,HC,AFI
OB-2	FTA,TTD,APTD,THD,TCD,CI,EFW,Input LMP,Growth Curve
Various Probes	Convex probe (2.0 - 5MHz)
	Linear probe (5.5 - 9.0MHz)
	Trans-vaginal probe (5.0 - 8.5MHz)
	Micro-convex probe (4.0 - 7.0MHz)
Probe frequency:
Convex probe	Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5MHz Depth: 16 level 【126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm】
Linear probe	Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz Depth: 16 level 【35,42,49,62,69,76,83,90,97,104mm】
Trans-vaginal probe	Frequency: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz Depth: 16 level 【62,69,76,83,90,97,104,111,125,139mm】
Micro-convex probe	Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
Micro-convex probe	Depth: 16 level 【62,69,83,97,111,125,139,152,166,180mm】
