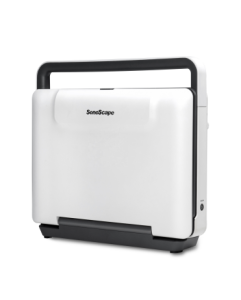

Sonoscape-E1 Portable Ultrasound Scanner

Introduction of SonoScape E1

E1 is the first member of the E-series family.

As a new released hand carried B/W ultrasound model,

it is equipped with complete functions which enhances its competitiveness

to entry level ultrasound models. It not only provides satisfying image quality

but also brings users a smooth workflow experience.

*Ease of Use
- Quick Boot Up
- Auto Brightness Adjustment- Auto Image Optimized
- Auto IMT
- Auto Trace

* Efficient Diagnosis

- μ-Scan – Speckle reduction & Edge Enhancement

- Spatial Compound Imaging

- PIH – Pure Inversion Harmonic

- Wide Scan – Image Area Enlargement

- PW Doppler

- Chroma

– Highlight Image Details
- B Steer for Linear Probe

* Ergonomic Design

- Up to 3 Transducer Ports

- Light Weight and Compact

- Large Anti-flickering HD LED Screen

- Tilting Monitor Angle Adjustment

- Backlit Keyboard and Intelligent Panel

- Long-lasting Battery for 90 min

* Expansive Accessories

- Wi-Fi and Blue*tooth Available

- DICOM 3.0

- 500GB Hard Disk

- Height Adjustable Trolley

- Durable, Carry-on Site Suitcase

Technical Parameter

Dimension (L×H×D)	378×352×114 mm	Transducer Connector	1 (2 as option)
Monitor Size	15.6'' LCD	Variable Frequencies	5
Anti-flickering	standard	Frequency Range	2-15 MHz
Adjustable Monitor Angle	45°	Transducer Elements	128
Back-lit Keyboard	standard	Linear Transducer	L746, L741
Weight	5.9 kg (without battery) 6.3kg (with battery)	Convex Transducer	C361, C351
Mobile Trolley	optional	Micro-Convex Transducer	C613
Battery Pack	optional	Max.Scanning Angle	165°
Footswitch	optional	M/2B/BM/4B	standard
Hand Carried Bag	optional	B+PW Mode	optional
THI/PHI/Gain	standard	TGC	standard (8-seg)
Dynamic Range	20-200 dB	Boot-up Time/Wake-up Time	30s/5s
Battery Endurance Time	120 min	PDF Report with insert 4 images	standard/unlimited
